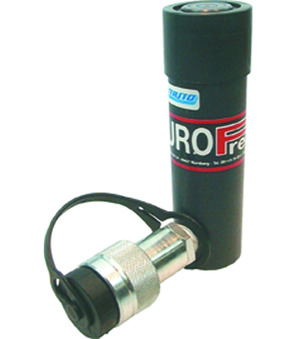

Cylinder Single acting 111-50-80-M60x1,5-M8
cylinder single acting series CMI; with spring return; industrial type; operating pressure max. 700bar; for any mounting position; threaded cylinder tube, mounting holes at the bottom; connection 3/8" NPT female thread; cylinder from CMI-50N100 on will be supplied with handle; push force 111kN; stroke 50mm; oil capacity 80ccm; tube thread M60x1,5; base thread M8
Intrastat No.: 84139100
Country of origin: Italy
Weight: 2.27 Kg
Short Itemnumber: CMI10N50
Country of origin: Italy
Weight: 2.27 Kg
Short Itemnumber: CMI10N50
Scope of delivery
cylinder, high-pressure female coupling, dust protection
cylinder single acting series CMI; with spring return; industrial type; operating pressure max. 700bar; for any mounting position; threaded cylinder tube, mounting holes at the bottom; connection 3/8" NPT female thread; cylinder from CMI-50N100 on will be supplied with handle; push force 111kN; stroke 50mm; oil capacity 80ccm; tube thread M60x1,5; base thread M8
| dimension | |
|---|---|
| Stroke | 50 mm |
| Tube thread | M60x1,5 |
| Base thread | M8 |
| pressure | |
| Push force | 111 kN |
| characteristics | |
| Oil capacity | 80 ccm |
No spare parts are available for this product.
