cylinder single acting 232-250-830-M85x1,5-M10

Price:

181.103,00 din.
Cylinder Single acting Series CMI Store
  1. Products
  2. Hydraulics
  3. High pressure hydraulics
  4. Cylinder
  5. Cylinder Single acting Series CMI
  6. CMI-25N250
cylinder single acting 232-250-830-M85x1,5-M10
Cylinder Single acting CMI-25N150
Cylinder Single acting CMI-25N150
cena na zahtev
cylinder single acting 496-50-354-M125x2-M12
cylinder single acting 496-50-354-M125x2-M12
208.833,00 din.
208.833,00 din.

cylinder single acting 232-250-830-M85x1,5-M10

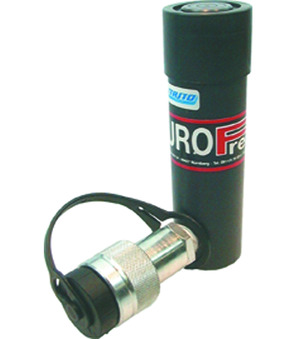

cylinder single acting series CMI; with spring return; industrial type; operating pressure max. 700bar; for any mounting position; threaded cylinder tube, mounting holes at the bottom; connection 3/8" NPT female thread; cylinder from CMI-50N100 on will be supplied with handle; push force 232kN; stroke 250mm; oil capacity 830ccm; tube thread M85x1,5; base thread M10

Intrastat No.: 84139100
Country of origin: Italy
Weight: 8.2 Kg
Short Itemnumber:CMI25N250
https://www.stasto.rs/web/image/product.template/21409/image_1920?unique=2a53474

cylinder single acting series CMI; with spring return; industrial type; operating pressure max. 700bar; for any mounting position; threaded cylinder tube, mounting holes at the bottom; connection 3/8" NPT female thread; cylinder from CMI-50N100 on will be supplied with handle; push force 232kN; stroke 250mm; oil capacity 830ccm; tube thread M85x1,5; base thread M10

181.103,00 din. 181103.0 RSD 181.103,00 din.

cena na zahtev

  • Stroke
  • Tube thread
  • Base thread
  • Push force
  • Oil capacity

This combination does not exist.

Availability:
Contact Us
dimension
Stroke 250 mm
Tube thread M85x1,5
Base thread M10
pressure
Push force 232 kN
characteristics
Oil capacity 830 ccm

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Cylinder Single acting Series CMI_EN.pdf
Download
No spare parts are available for this product.
​
