2/2-way-coaxial valves CVTC-8...

Price:

999.999,00 din.

Home
Search
⁰
Wishlist
Account

2/2-way-coaxial valves Series CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF... Store

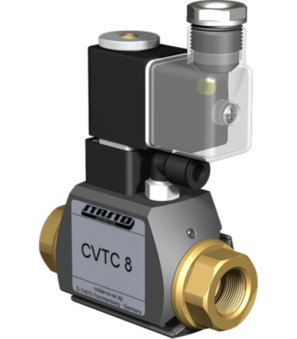

2/2-way-coaxial valves CVTC-8...

2/2-way-coaxial valves CVTC-8...

2/2-way-coaxial valves Series CVTC…/CVTM…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF...; Externally controlled; Pressure balanced; NC/NO; Body available in brass, steel zinc plated, brass nickel plated, steel nickel plated, non-ferrous or stainless steel; These externally controlled valves will be designed acc. to the application; Valves in ATEX design are available on request; Application: gaseous, liquid, high viscosity and dirty media; DN 8mm; G 3/8"; Pressure range 0-40bar; Medium temperature -20 ... +60°C; Actuation pneumatisch

Intrastat No.: 84812090
Country of origin: Austria
Weight: 5.0 Kg
Short Itemnumber:CVTC8...

2/2-way-coaxial valves series CVTC…/CVTM…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF...; externally controlled; pressure balanced; NC/NO; body available in brass, steel zinc plated, brass nickel plated, steel nickel plated, non-ferrous or stainless steel; these externally controlled valves will be designed acc. to the application; valves in ATEX design are available on request; application: gaseous, liquid, high viscosity and dirty media; DN 8mm; G 3/8"; pressure range 0-40bar; medium temperature -20 ... +60°C; actuation pneumatisch

999.999,00 din. 999999.0 RSD 999.999,00 din.

Female thread
- G 3/8"
DN
- 8 mm
Flange
- -
Actuation
- Pneumatically
Design
- ATEX
Pressure range
- 0...40 bar
Medium temperature
- -20...+60 °C

This combination does not exist.

Availability:

Add to Cart

dimension
Female thread	G 3/8"
DN	8 mm
function
Actuation	Pneumatically
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Medium temperature	-20...+60 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_2/2-way-coaxial valves CVTC-8..._EN.pdf

Declarations of Conformity

1

Declaration of conformity_2/2-way-coaxial valves Series CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._EN.pdf

Datové listy

1

Datový list_2/2 cestné koaxiální ventily CVTC-8..._CS.pdf

Prohlášení o shodě

1

Prohlášení o shodě_2/2 cestné koaxiální ventily série CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._CS.pdf

Datenblätter

1

Datenblatt_2/2-Wege-Coaxialventile CVTC-8..._DE.pdf

Konformitätserklärungen

1

Konformitätserklärung_2/2-Wege-Coaxialventile Serie CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._DE.pdf

Adatlapok

1

Adatlap_2/2-es koaxiális szelepek CVTC-8..._HU.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_2/2-es koaxiális szelepek sorozat CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._HU.pdf

Karty katalogowe

1

Arkusz danych_2/2-drogowy zawór współosiowy Coax CVTC-8..._PL.pdf

Deklaracje zgodności

1

Deklaracja zgodności_2/2-drogowy zawór współosiowy Coax Seria CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._PL.pdf

Podatkovni listi

1

Podatkovni list_2/2-potni koaksialni ventil CVTC-8..._SL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_2/2-potni koaksialni ventil serija CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._SL.pdf

Data Sheets

1

Tehnički list_2/2-kraki koaksijalni ventili CVTC-8..._SRLATIN.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_2/2-kraki koaksijalni ventili serije CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF..._SRLATIN.pdf

No spare parts are available for this product.
