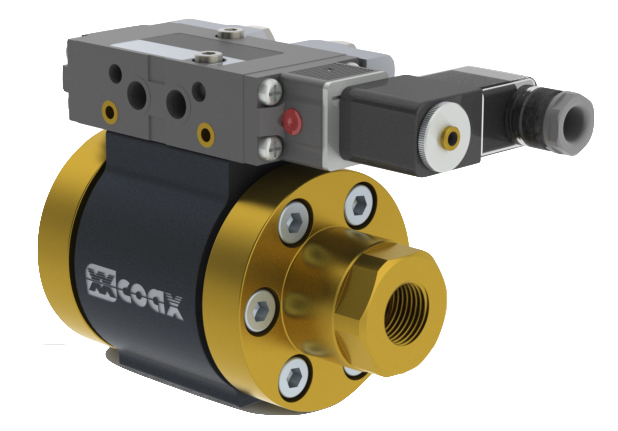

2/2-way-coaxial valves CVTEH-10...
2/2-way-coaxial valves Series CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF...; Externally controlled; Pressure balanced; NC/NO; Body available in brass, steel zinc plated, brass nickel plated, steel nickel plated, non-ferrous or stainless steel; These externally controlled valves will be designed acc. to the application; Valves in ATEX design are available on request; Application: gaseous, liquid, high viscosity and dirty media; DN 10mm; G 3/8", G 1/2"; Pressure range 0-200bar; Medium temperature -20 ... +160°C; Actuation pneumatisch
Country of origin: Austria
Weight: 0.0 Kg
Short Itemnumber:CVTEH10...
2/2-way-coaxial valves series CVTC…/CVTEH…/CVTE…/CVFE…/CVTV…/CVFV…/CVFF...; externally controlled; pressure balanced; NC/NO; body available in brass, steel zinc plated, brass nickel plated, steel nickel plated, non-ferrous or stainless steel; these externally controlled valves will be designed acc. to the application; valves in ATEX design are available on request; application: gaseous, liquid, high viscosity and dirty media; DN 10mm; G 3/8", G 1/2"; pressure range 0-200bar; medium temperature -20 ... +160°C; actuation pneumatisch
| dimension | |
|---|---|
| Female thread | G 3/8"...1/2" |
| DN | 10 mm |
| function | |
| Actuation | Pneumatically |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...200 bar |
| characteristics | |
| Medium temperature | -20...+160 °C |
