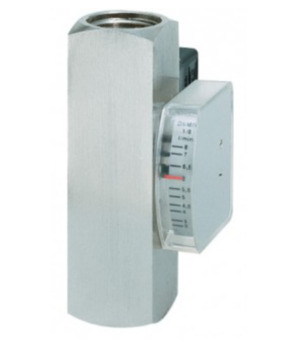

Flow monitors FM24-10-N-8
Flow monitors Wechsler-1"-30...110-250-250-1,5-130
Flow monitors Wechsler-1"-30...110-250-250-1,5-130
999.999,00 din.
999.999,00 din.
PS01-14F-50/250-01
PS01-14F-50/250-01
999.999,00 din.
999.999,00 din.

Flow monitors FM24-10-N-8

flow monitors; display lateral; viscosity compensated ...900mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 2...8l/min; maximum pressure 250bar; U max. 250V; max. current 3A;

Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.246 Kg
Short Itemnumber:FM2410N8
https://www.stasto.rs/web/image/product.template/233567/image_1920?unique=a921185

flow monitors; display lateral; viscosity compensated ...900mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 2...8l/min; maximum pressure 250bar; U max. 250V; max. current 3A;

96.456,00 din. 96456.0 RSD 96.456,00 din.

cena na zahtev

  • Connection
  • Length
  • Switch unit
  • U max.
  • I max.
  • Maximum pressure
  • Switching range

This combination does not exist.

Availability:
Contact Us
dimension
Connection G 1"
Length 130 mm
function
Switch unit NO contact
Electrical key figures
U max. 250 V
I max. 3 A
pressure
Maximum pressure 250 bar
characteristics
Switching range 2...8 l/min

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flow monitors Series FM24_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Strömungswächter Serie FM24_DE.pdf
Download
No spare parts are available for this product.
