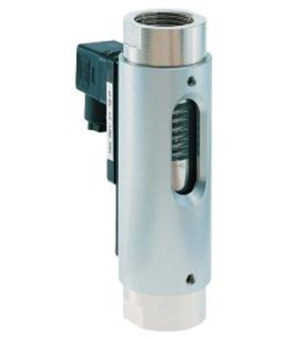

FM42-34-N-130
Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact; Connection 3/4"; Switching range 50…130Nl/min; Maximum pressure 16bar; U max. 230V; I max. 3A; Length 138,5mm
Intrastat No.: 90268080
Country of origin: Germany
Weight: 0.85 Kg
Short Itemnumber:FM4234N130
Country of origin: Germany
Weight: 0.85 Kg
Short Itemnumber:FM4234N130
flow monitors with inspection glass series FM42-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; air scale; switching range at 1 bar absolute; 20°C; NO contact; connection 1/2"; switching range 12…40Nl/min; maximum pressure 16bar; U max. 230V; I max. 3A; length 114mm
| dimension | |
|---|---|
| Connection | G 3/4" |
| Length | 138,5 mm |
| Electrical key figures | |
| U max. | 230 V |
| I max. | 3 A |
| pressure | |
| Maximum pressure | 16 bar |
| characteristics | |
| Switching range | 50...130 Nl/min |
No spare parts are available for this product.
