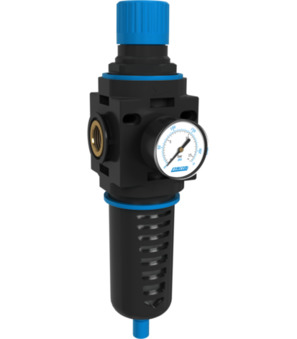

FR-12N-5-04-R-PE-SS

FR-12N-5-04-R-PE-SS

Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5…4bar; Filter element 5ym; Plastic bowl with protection cage; Connection 1/2"NPT; Flow at 6,3bar/Δp=1bar 2880Nl/min; Max. inlet pressure 12,5bar

Intrastat No.: 84811005
Country of origin: Italy
Weight: 0.44 Kg
Short Itemnumber: FR12N504RPESS
https://www.stasto.rs/web/image/product.template/125534/image_1920?unique=f96ddcc

filter regulator; relieving; drain valve semi-automatic; pressure range 0,5…4bar; filter element 5ym; plastic bowl with protection cage; connection 1/2"NPT; flow at 6,3bar/Δp=1bar 2880Nl/min; max. inlet pressure 12,5bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    FR-12N-5-04-R-PE-SS-X x 1.0
    FR-12N-5-04-R-PE-SS-X
    Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5…4bar; Filter element 5ym; Plastic bowl with protection cage; Connection 1/2"NPT; Flow at 6,3bar/Δp=1bar 2880Nl/min; Max. inlet pressure 12,5bar; Without manometer
    Add to Cart
    MA001-40R-6-D-01 x 1.0
    MA001-40R-6-D-01
    Bourdon tube manometer; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-6/0-87; Unit bar/psi; Connection 1/8"NPT
