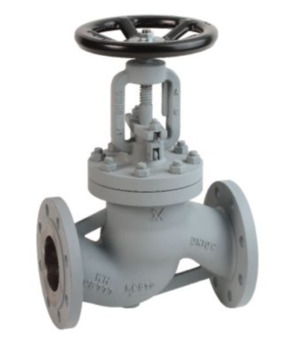

Globe valve GL120-20-W-C-3C01
globe valve series GL120; PN40; housing steel; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10…+400°C; pressure range; with control cone; DN 20mm; length 150mm; pressure range 0...40bar; incl. notch impact test; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Country of origin: Italy
Short Itemnumber: GL12020WC3C01
globe valve series GL120; PN40; housing steel; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10…+400°C; pressure range; with control cone; DN 20mm; length 150mm; pressure range 0...40bar; incl. notch impact test; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
| dimension | |
|---|---|
| DN | 20 mm |
| Length | 150 mm |
| pressure | |
| Pressure range | 0...40 bar |
