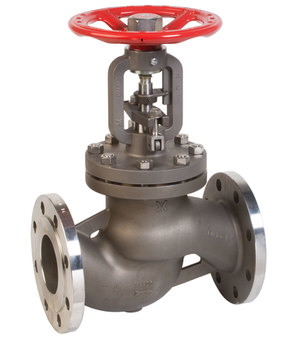

Globe valve GL123-25-W-C-3C
globe valve series GL123; PN40; with control cone; body AISI 316; seat, cone, stem stainless steel AISI 316; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10..+400°C; DN 25mm; length 160mm; pressure range 0...40bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
Intrastat No.: 84818073
Country of origin: Italy
Weight: 6.6 Kg
Short Itemnumber: GL12325WC3C
Country of origin: Italy
Weight: 6.6 Kg
Short Itemnumber: GL12325WC3C
globe valve series GL123; PN40; with control cone; body AISI 316; seat, cone, stem stainless steel AISI 316; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10..+400°C; DN 25mm; length 160mm; pressure range 0...40bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
| dimension | |
|---|---|
| DN | 25 mm |
| Length | 160 mm |
| Flange | PN40 |
| pressure | |
| Pressure range | 0...40 bar |
No spare parts are available for this product.
