Hydraulic cylinder Double acting HFR0200400

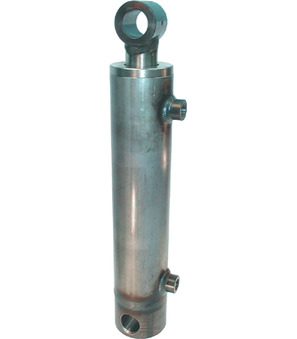

Hydraulic cylinder Double acting HFR0200400

Hydraulic cylinder Double acting Series HFR; Weld-on plug socket, Mounting hole in rod and bottom; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max.Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 32mm; Diameter Rod 20mm; Stroke 400mm; Connection 1/4"; Length 555mm; Diameter Bolt 16,2mm

Hydraulikzylinder doppeltwirkend Serie HFR
Intrastat No.: 84311000
Country of origin: Italy Made in Europe
Weight: 4.1 Kg
Short Itemnumber: HFR0200400
https://www.stasto.rs/web/image/product.template/21531/image_1920?unique=bcfc56d

Hydraulic cylinder Double acting Series HFR; Weld-on plug socket, Mounting hole in rod and bottom; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max.Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 32mm; Diameter Rod 20mm; Stroke 400mm; Connection 1/4"; Length 555mm; Diameter Bolt 16,2mm

19.716,00 din. 19716.0 RSD 19.716,00 din.

cena na zahtev

excl. tax
  • Connection
  • Stroke
  • Length
  • Diameter Outside
  • Diameter Bolt
  • Piston diameter
  • Diameter Rod

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/4"
Piston diameter 32 mm
Diameter Rod 20 mm
Stroke 400 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Connection 1/4"
Piston diameter 32 mm
Diameter Rod 20 mm
Stroke 400 mm
Length 555 mm
Diameter Bolt 16,2 mm
Diameter Outside 42 mm

HFR0200400
