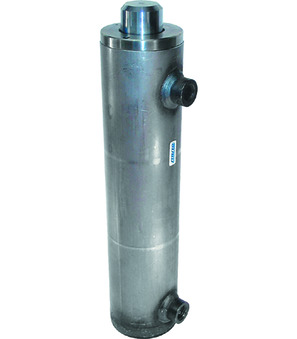

Hydraulic cylinder Standard series Double acting HM02300500

Hydraulic cylinder Standard series Double acting HM02300500

Hydraulic cylinder Standard series Double acting Series HM; Weldable, Without bracket; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max. Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 50mm; Diameter Rod 30mm; Stroke 500mm; Connection 3/8"; Length 640mm

Hydraulikzylinder Standardreihe doppeltwirkend Serie HM
Intrastat No.: 84311000
Country of origin: Italy Made in Europe
Weight: 8.39 Kg
Short Itemnumber: HM02300500
https://www.stasto.rs/web/image/product.template/17272/image_1920?unique=49ba194

hydraulic cylinder standard series double acting series HM; weldable, without bracket; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter piston 50mm; diameter rod 30mm; stroke 500mm; connection 3/8"; length 640mm

25.662,00 din. 25662.0 RSD 25.662,00 din.

cena na zahtev

excl. tax
  • Connection
  • Stroke
  • Length
  • Piston diameter
  • Diameter Rod

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/8"
Piston diameter 50 mm
Diameter Rod 30 mm
Stroke 500 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Connection 3/8"
Piston diameter 50 mm
Diameter Rod 30 mm
Stroke 500 mm
Length 640 mm

HM02300500

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

2
English
ZIP

Data Sheets

1

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

2
French / Français
ZIP

Data Sheets

1

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

2
No spare parts are available for this product.
