Knife gate valve with double acting actuator L1N2H2-5-65-B

Price:

999.999,00 din.
Knife gate valve with double acting actuator Series L1N Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Knife gate valve with double acting actuator Series L1N
  6. L1N2H2-5-65-B
Knife gate valve with double acting actuator L1N2H2-5-65-B
Knife gate valve with double acting actuator L1N2H2-5-50-B
Knife gate valve with double acting actuator L1N2H2-5-50-B
999.999,00 din.
999.999,00 din.
Plattenschieber mit doppeltwirkendem Pneumatikantrieb L1N2H2-5-65-B (Kopie)
Plattenschieber mit doppeltwirkendem Pneumatikantrieb L1N2H2-5-65-B (Kopie)
137.299,00 din.
137.299,00 din.

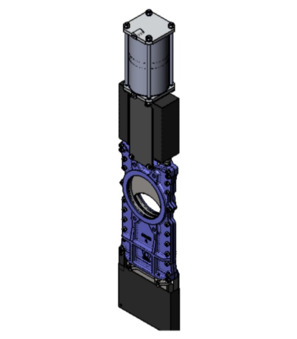

Knife gate valve with double acting actuator L1N2H2-5-65-B

Knife gate valve with double acting actuator Series L1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 100.0 Kg
Short Itemnumber:L1N2H2565B
https://www.stasto.rs/web/image/product.template/134227/image_1920?unique=4a6b8b2

knife gate valve with double acting actuator series L1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 65mm; length 40mm; pressure range 0...10bar

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 40 mm
pressure
Pressure range 0...10 bar
No spare parts are available for this product.
​
