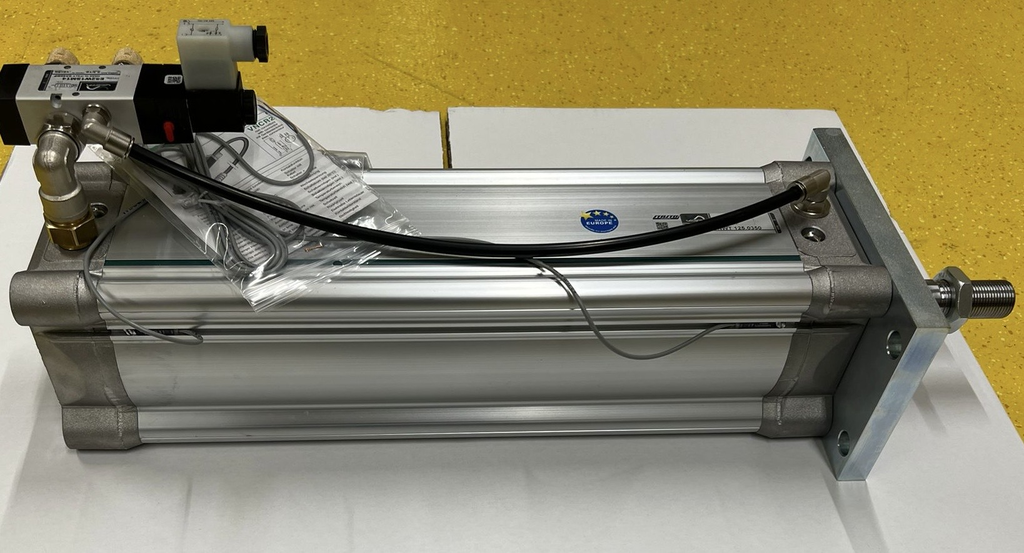

LHS202

LHS202

STASTO combination
fully assembled and tested
for cylinder diameter 125 mm; stroke 350mm
incl. E52W1SM14 5/2-way valve; voltage 24VDC;
incl. limit switch VNPE3

Intrastat No.: 84812090
Country of origin: Italy
Weight: 16.935 Kg
Short Itemnumber: LHS202
https://www.stasto.rs/web/image/product.template/179792/image_1920?unique=ba7a68c

STASTO combination
fully assembled and tested
for cylinder diameter 125 mm; stroke 350mm
incl. E52W1SM14 5/2-way valve; voltage 24VDC;
incl. limit switch VNPE3

140.976,00 din. 140976.0 RSD 140.976,00 din.

cena na zahtev

excl. tax
  • Connection
  • Dimension
  • Function
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Brand STASTO
Brand STASTO
Profile magnetic cylinder NWT125-350
NWT125-350 x 1.0 Pcs
Profile magnetic cylinder NWT125-350
Profile magnetic cylinder Series NWT; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Diameter 125mm; Stroke 350mm; Piston rod thread M27x2; Connection 1/2"; Push force at 6 bar 7359N
5/2-way valve E52W1SM14
E52W1SM14 x 1.0 Pcs
5/2-way valve E52W1SM14
5/2-way valve Series E5.; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/4"; Nominal diameter 8mm; Pressure range 2,5-10bar; Flow rate 1080Nl/min
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
C002-31-LV-2 x 1.0 Pcs
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
Magnetic switches VNPE3
VNPE3 x 2.0 Pcs
Magnetic switches VNPE3
Magnetic switch Series VN; Function Electronic; LED; Temperature range -20...+85°C; Suitable for Cylinder ISO 6432, Compact cylinder, Cylinder ISO 15552, Cylinder Series AW2, RWS, CRW, Round cylinder, Gripper Diameter 20+32mm; Connection Kabel; U 6...30 DCV; Current 0,2A; S 4VA; Cable length 3m
Throttle RSS-1/4"
RSS-1/4" x 2.0 Pcs
Throttle RSS-1/4"
Throttle Series RSS; Silencer; Self blocking; Connection 1/4"; DN 6,5mm
Plastic hose CP-8/6-BK-1
CP-8/6-BK-1 x 0.5 m
Plastic hose CP-8/6-BK-1
Plastic hose Series CP; Material Co-polyurethane; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,40; Vacuum -0,87bar; Temperature range -40...100°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 23°C 15bar; Colour schwarz
