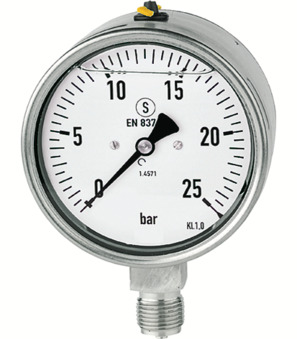

Glycerin manometer Series MA030-B; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Below; Diameter 100mm; Indicating range -1...+5; Unit bar; Class 1,0; Connection 1/2"NPT
Country of origin: Austria
Weight: 2.04 Kg
Short Itemnumber: MA030100NBV5
glycerin manometer series MA030-B; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; connection below; diameter 100mm; indicating range -1...+5; unit bar; class 1,0; connection 1/2"NPT
Technical specifications
| Connection | 1/2" NPT |
|---|---|
| Diameter | 100 mm |
| Indicating range | -1...+5 |
| Unit | bar |
| Connection | 1/2" NPT |
| Diameter | 100 mm |
| Indicating range | -1...+5 |
| Unit | bar |
| Class | 1,0 |
MA030-100NB-V5
