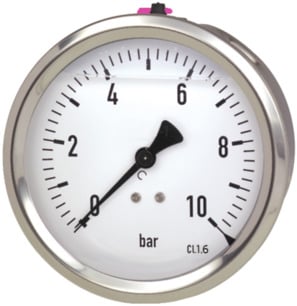

Glycerin manometer MA030-100R-10
Glycerin manometer Series MA030-R; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Rear; Diameter 100mm; Indicating range 0...10; Unit bar; Class 1,0; Connection 1/2"
Intrastat No.: 90262040
Country of origin: Austria
Weight: 0.81 Kg
Short Itemnumber: MA030100R10
Country of origin: Austria
Weight: 0.81 Kg
Short Itemnumber: MA030100R10
glycerin manometer series MA030-R; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; connection rear; diameter 100mm; indicating range 0...10; unit bar; class 1,0; connection 1/2"
| dimension | |
|---|---|
| Diameter | 100 mm |
| Connection | 1/2" |
| characteristics | |
| Indicating range | 0...10 |
| Unit | bar |
| Class | 1,0 |
No spare parts are available for this product.
