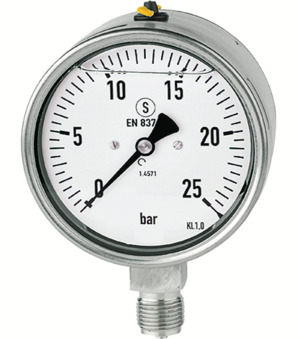

Glycerin manometer Series MA082-B; Bourdon tube manometer; Safety version EN837-1 S3; Break-proofed separating plate; Blow-out back; Body Stainless steel AISI 304; Measuring unit Stainless steel AISI 316L; Motion work Stainless steel 1.4571; Front glass Laminated safety glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Below; Diameter 100mm; Indicating range 0...10; Unit bar; Connection 1/2"; Class 1,0
Country of origin: Austria
Weight: 1.71 Kg
Short Itemnumber: MA082100B10
glycerin manometer series MA082-B; bourdon tube manometer; safety version EN837-1 S3; break-proofed separating plate; blow-out back; body stainless steel AISI 304; measuring unit stainless steel AISI 316L; motion work stainless steel AISI 316Ti; front glass laminated safety glass; ambient temperature -20...+60°C; medium temperature max. +100°C; connection below; diameter 100mm; indicating range 0...10; unit bar; connection 1/2"; class 1,0
Technical specifications
| Connection | 1/2" |
|---|---|
| Diameter | 100 mm |
| Indicating range | 0...10 |
| Unit | bar |
| Connection | 1/2" |
| Diameter | 100 mm |
| Indicating range | 0...10 |
| Unit | bar |
| Class | 1,0 |
MA082-100B-10
Documents
Czech / Čeština
Data Sheets
1-
PDF
Datový list · glycerinový manometr série MA082-B · CS
Data sheet 372 KB Updated 13/06/2026
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Glyzerinmanometer Serie MA082-B · DE
Data sheet 372 KB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Glycerin manometer Series MA082-B · EN
Data sheet 370 KB Updated 13/06/2026
Hungarian / Magyar
Data Sheets
1-
PDF
Adatlap · glicerines nyomásmérő óra sorozat MA082-B · HU
Data sheet 372 KB Updated 13/06/2026
Polish / Język polski
Data Sheets
1-
PDF
Arkusz danych · manometr glicerynowy Seria MA082-B · PL
Data sheet 373 KB Updated 13/06/2026
Slovenian / slovenščina
Data Sheets
1-
PDF
Podatkovni list · Glicerinski manometer serija MA082-B · SL
Data sheet 371 KB Updated 13/06/2026
Serbian (Latin) / srpski
Data Sheets
1-
PDF
Tehnički list · glicerinski manometar serije MA082-B · SRLATIN
Data sheet 371 KB Updated 13/06/2026
