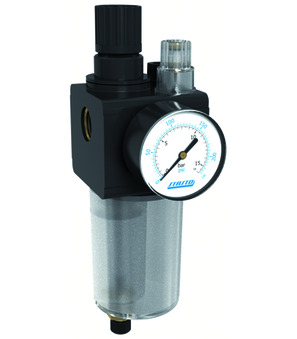

MU121-12-0,5/16

MU121-12-0,5/16

Maintenance unit; Relieving; Drain valve Manually; Pressure range 0,5...16bar; Plastic bowl; Connection 1/2"; Flow at 6bar/Δp=1bar 1400Nl/min; Max. inlet pressure 16bar; Filter element 40ym

Intrastat No.: 84811005
Country of origin: Germany
Weight: 1.06 Kg
Short Itemnumber: MU121120.516
https://www.stasto.rs/web/image/product.template/118018/image_1920?unique=ab69362

maintenance unit; relieving; drain valve manually; pressure range 0,5...16bar; plastic bowl; connection 1/2"; flow at 6bar/Δp=1bar 1400Nl/min; max. inlet pressure 16bar; filter element 40ym

31.984,00 din. 31984.0 RSD 31.984,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/2"
Pressure range 0,5...16bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 1/2"
Pressure range 0,5...16bar
Brand STASTO

MU121-12-0,5/16

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
B0-MU121-14/12 x 1.0 Pcs
B0-MU121-14/12
Plastic bowl; Suitable for Maintenance unit, Series MU121; Drain valve Manually; Connection 1/4", 3/8"; 1/2"; Flow rate 1400Nl/min
FE-MU121-14/12-F40 x 1.0 Pcs
FE-MU121-14/12-F40
Filter element; Suitable for Maintenance unit, Series MU121; Connection 1/4", 3/8"; 1/2"; Flow rate 1400Nl/min; Pore size 40ym
MU121-12-0,5/16-X x 1.0 Pcs
Maintenance unit 1/2“-1400-16-40
Maintenance unit; Relieving; Drain valve Manually; Pressure range 0,5...16bar; Plastic bowl; Connection 1/2"; Flow at 6bar/Δp=1bar 1400Nl/min; Max. inlet pressure 16bar; Filter element 40ym
Bourdon tube manometer MA001-50R-25-D
MA001-50R-25-D x 1.0 Pcs
Bourdon tube manometer MA001-50R-25-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-25/0-360; Unit bar/psi; Connection 1/4"
