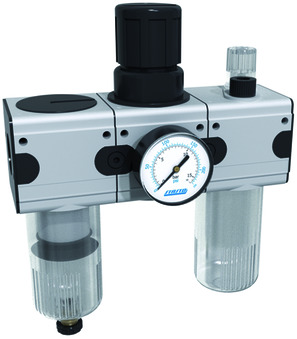

Maintenance unit 3/4"-3000-16

Maintenance unit 3/4"-3000-16

Maintenance unit Series Modul MU303; Relieving; Drain valve Semi-automatic; Pressure range 0,5...16bar; Plastic bowl; Filter element 5µm; Connection 3/4"; Flow at 6bar/Δp=1bar 3000Nl/min; Max. inlet pressure 16bar

Wartungseinheit Serie Modul MU303
Wartungseinheit Serie Modul MU303
Intrastat No.: 84811005
Country of origin: Germany
Weight: 2.43 Kg
Short Itemnumber: MU303340.516

Scope of delivery

maintenance unit, manometer
https://www.stasto.rs/web/image/product.template/176882/image_1920?unique=ca83db0

maintenance unit series Modul MU303; relieving; drain valve semi-automatic; pressure range 0,5...16bar; plastic bowl; filter element 5µm; connection 3/4"; flow at 6bar/Δp=1bar 3000Nl/min; max. inlet pressure 16bar

31.690,00 din. 31690.0 RSD 31.690,00 din.

cena na zahtev

excl. tax
  • Connection
  • Dimension
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/4"
Pressure range 0,5...16bar
Flow at 6bar/Δp=1bar 3000 Nl/min
Max. inlet pressure 16 bar
All specifications (6)
Documents
Data sheets, drawings and CAD files
Connection 3/4"
Pressure range 0,5...16bar
Flow at 6bar/Δp=1bar 3000 Nl/min
Max. inlet pressure 16 bar
Filter element 5 µm
Brand STASTO

MU303-34-0,5/16

Documents

3 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Filter FI03-34
FI03-34 x 1.0 Pcs
Filter FI03-34
Filter Series Modul FI03; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Filter element 5µm; Connection 3/4"; Flow at 6bar/Δp=1bar 4000Nl/min
RE03-34-0,5/16 x 1.0 Pcs
RE03-34-0,5/16
Pressure regulator; Relieving; Connection 3/4"; Flow at 6bar 5700Nl/min; Pressure range 0,5-16bar; Max. inlet pressure 16bar
Bourdon tube manometer MA001-50R-16-D
MA001-50R-16-D x 1.0 Pcs
Bourdon tube manometer MA001-50R-16-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
Lubricator LU03-34
LU03-34 x 1.0 Pcs
Lubricator LU03-34
Lubricator Series Modul LU03; Inlet pressure Max. 16bar; Plastic bowl; Connection 3/4"; Flow at 6bar/Δp=1bar 5000Nl/min
MCS03-12/34
MCS03-12/34 x 2.0 Pcs
MCS03-12/34
Connection set For 2 units; Connection 1/2", 3/4"
KART0N112 x 1.0 Pcs
KART0N112
Packaging board, 303X215X135
