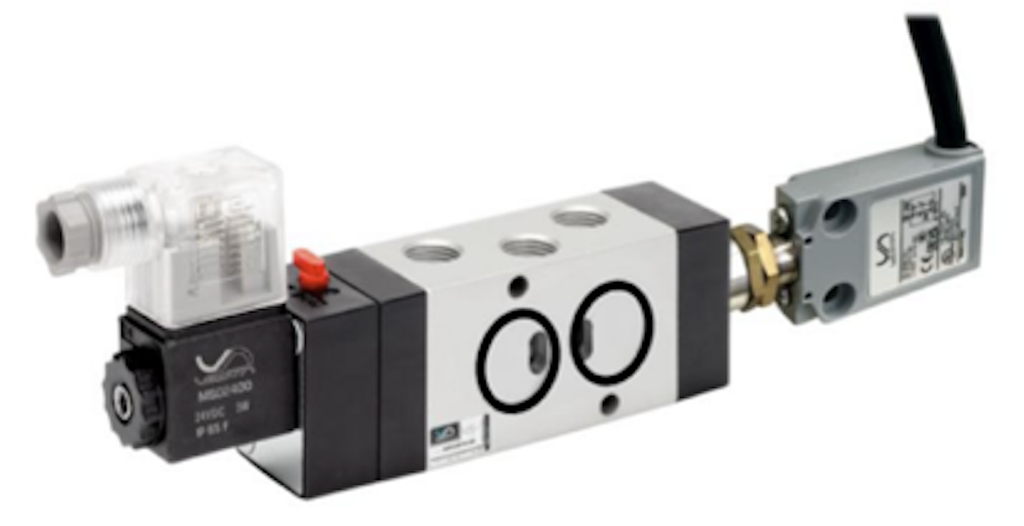

3/2-way valve NM32W1S-SSW
3/2-way valve Series NM; According to NAMUR; Pilot-operated; Actuation Electrical/internal control air; Standard coil C001; Connector size 22mm; Connection 1/4"; Nominal diameter 8mm; Function NC; Pressure range 2,5-10bar; Flow rate 1080Nl/min; Incl. Mechanical limit switch With Electrical switching contact To Monitoring of the switch position; Protection class IP67;
Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.0 Kg
Short Itemnumber: NM32W1SSSW
Country of origin: Italy
Weight: 0.0 Kg
Short Itemnumber: NM32W1SSSW
3/2-way valve series NM; according to NAMUR; pilot-operated; actuation electrical/internal control air; standard coil C001; connector size 22mm; connection 1/4"; nominal diameter 8mm; function NC; pressure range 2,5-10bar; flow rate 1080Nl/min; incl. Mechanical limit switch with electrical switching contact to monitoring of the switch position; protection class IP67;
| dimension | |
|---|---|
| Connection | 1/4" |
| Exhaust port | 1/4" |
| DN | 8 mm |
| function | |
| Function | NC |
| Actuation | Electric/Internal control air |
| Designs | |
| Connector size | 22 mm |
| pressure | |
| Pressure range | 2,5...10 bar |
| characteristics | |
| Coil | C001 |
| Flow rate | 1080 Nl/min |
| Others | |
| Air relieving Tube | M5 |
No spare parts are available for this product.
