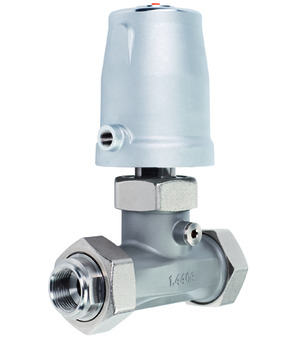

Pinch valve PI03-12-NZS-81

Pinch valve PI03-12-NZS-81

Pinch valve Series PI03; NC; Connection parts 1.4435; Tube NBR food-safe; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Control pressure 3,5-10bar; Diameter Actuator 80mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 3.21 Kg
Short Itemnumber: PI0312NZS81
https://www.stasto.rs/web/image/product.template/100734/image_1920?unique=b5fa7f5

pinch valve series PI03; NC; connection parts AISI 316L; tube NBR food-safe; medium temperature -20...+80°C; RP 1/2"; DN 15mm; pressure range 0-6bar; control pressure 3,5-10bar; diameter actuator 80mm

130.778,00 din. 130778.0 RSD 130.778,00 din.

cena na zahtev

  • Female thread
  • DN
  • Cable length
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure range
  • Control pressure
  • Coil
  • Actuator
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 1/2"
DN 15 mm
Diameter Actuator 80 mm
pressure
Pressure range 0...6 bar
Control pressure 3,5...10 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Pinch valve Series PI03_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Pinch valve Series PI03_EN.pdf
Download
CAD / 3D
1
CADSTEP_PI0312NZS81.stp
Download
