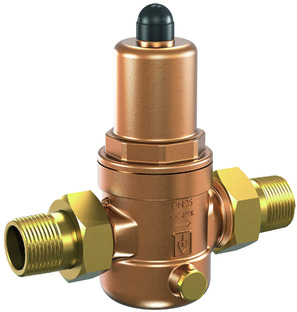

Pressure regulator PR03-112-0.5/2
Pressure regulator Series PR03...0.5/2; Body Bronze; Fine screen Stainless steel; Seals EPDM; Maximum inlet pressure 25bar; Operating pressure range 0,5...2bar; Medium temperature -20...+120°C; R 11/2"; Mesh size 0,75mm; Suitable manometer MA001-63R-2,5
Intrastat No.: 84811099
Country of origin: Germany
Weight: 6.2 Kg
Short Itemnumber:PR031120.52
Country of origin: Germany
Weight: 6.2 Kg
Short Itemnumber:PR031120.52
pressure regulator series PR03...0.5/2; body bronze; fine screen stainless steel; seals EPDM; maximum inlet pressure 25bar; operating pressure range 0,5...2bar; medium temperature -20...+120°C; R 11/2"; mesh size 0,75mm; suitable manometer MA001-63R-2,5
| dimension | |
|---|---|
| Male thread | R 1 1/2" |
| Mesh size | 0,75 mm |
| pressure | |
| Outlet pressure | 0,5...2 bar |
| Inlet pressure | Max. 25 bar |
| characteristics | |
| Suitable manometer | MA001-63R-2,5 |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Pressure regulator Series PR03...0.5/2_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Pressure regulator Series PR03...0.5/2_EN.pdf
Download
CAD / 3D
1CADSTEP_PR031120.52.stp
Download
No spare parts are available for this product.
