Low pressure regulator Series PR25 Store

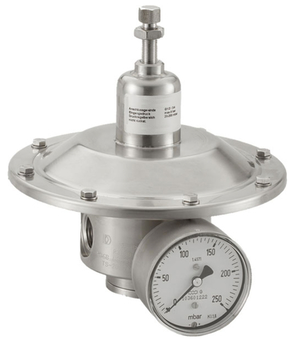

Low pressure regulator PR25-12W1-0,02/0,2

Name: Low pressure regulator PR25-12W1-0,02/0,2
Brand: STASTO
SKU: PR25-12W1-0,02/0,2

Low pressure regulator Series PR25; Body 1.4404; Seals FKM; Medium temperature -20...+80°C; Manometer connection 1/4"; Connection Inlet G 1/2"; Outlet G 3/4"; Pressure range 0,02-0,2bar; Max. inlet pressure 6bar; Flow at 6bar/Δp=5bar 1000Nl/min; Suitable manometer MA046-63R-250

Intrastat No.: 84811019
Country of origin: Italy
Weight: 2.07 Kg
Short Itemnumber: PR2512W10.020.2

low pressure regulator series PR25; body AISI 316L; seals FKM; medium temperature -20...+80°C; manometer connection 1/4"; connection inlet G 1/2"; outlet G 3/4"; pressure range 0,02-0,2bar; max. inlet pressure 6bar; flow at 6bar/Δp=5bar 1000Nl/min; suitable manometer MA046-63R-250

On request

Input connection
- G 1/2"
Pressure range
- 0,02...0,2 bar
Max. inlet pressure
- 6 bar
Suitable manometer
- MA046-63R-250
Flow rate at 6bar/Δp=5bar
- 1000 Nl/min
Output thread
- G 3/4"

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Input connection	G 1/2"
pressure
Pressure range	0,02...0,2 bar
characteristics
Max. inlet pressure	6 bar
Suitable manometer	MA046-63R-250
Flow rate at 6bar/Δp=5bar	1000 Nl/min
Others
Output thread	G 3/4"
