PS125-18-C-EPC02400-1

PS125-18-C-EPC02400-1

PS125-18-C

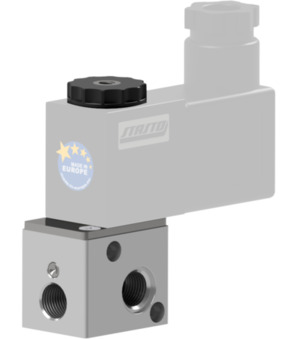

3/2-way valve Series PS125; Directly operated; Battery valve, Optional expandable; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/8"; Nominal diameter 1,2mm; Function NC; Pressure range 0…10bar; Flow rate 90Nl/min
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC

3/2-Wegeventil Serie PS125
3/2-Wegeventil Serie PS125
Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.377 Kg
Short Itemnumber: PS12518CEPC024001
https://www.stasto.rs/web/image/product.template/211668/image_1920?unique=ab69362

PS125-18-C
3/2-way valve series PS125; directly operated; battery valve, optional expandable; actuation electrical/spring; standard coil C001; connector size 22mm; connection 1/8"; nominal diameter 1,2mm; function NC; pressure range 0…10bar; flow rate 90Nl/min
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

24.017,00 din. 24017.0 RSD 24.017,00 din.

cena na zahtev

excl. tax
  • Connection
  • DN
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Flow rate

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/8"
Actuation Electric/Spring
Pressure range 0...10 bar
Flow rate 90 Nl/min
All specifications (8)
Documents
Data sheets, drawings and CAD files
Connection 1/8"
Actuation Electric/Spring
Pressure range 0...10 bar
Flow rate 90 Nl/min
DN 1,2 mm
Function NC
Voltage 24VDC
Design ATEX

PS125-18-C-EPC02400-1

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
3/2-way valve PS125-18-C
PS125-18-C x 1.0 Pcs
3/2-way valve PS125-18-C
3/2-way valve Series PS125; Directly operated; Battery valve, Optional expandable; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/8"; Nominal diameter 1,2mm; Function NC; Pressure range 0…10bar; Flow rate 90Nl/min
EPC02400-1
EPC02400-1 x 1.0 Pcs
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
