R0S015

R0S015

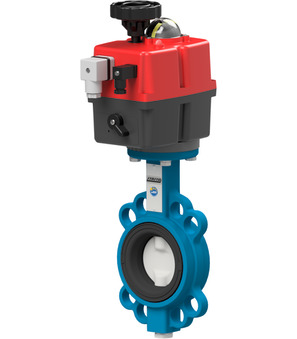

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Operating time 34s; Voltage 24...240VAC / 24...135VDC; With 1 mechanical limit switch Mounted

Intrastat No.: 84818085
Country of origin: Spain
Weight: 13.51 Kg
Short Itemnumber: R0S015
https://www.stasto.rs/web/image/product.template/161935/image_1920?unique=889c0b6

butterfly valve with electrical actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 150mm; length 56mm; operating time 34s; voltage 24...240VAC / 24...135VDC; with 1 mechanical limit switch mounted

163.008,00 din. 163008.0 RSD 163.008,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-150-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-150-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    J4C140-0H34-Q17 x 1.0
    Electrical actuator J4C140-0H34-Q17
    Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 140Nm; Operating time 34s; Flange ISO5211 F07/F10-star 17mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
