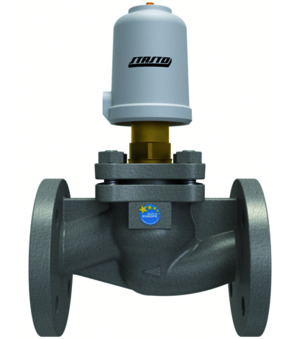

Pneumatically operated seat valve 32-0-5,5-5,7-10-50

Pneumatically operated seat valve 32-0-5,5-5,7-10-50

pneumatically operated seat valve series SE07-GE; NC; body cast iron EN-GJL-250; seal EPDM; flange PN16; for liquids; closing against flow; medium temperature -10...+140°C; DN 32mm; operating pressure 0-5,5bar; control pressure 5,7-10bar; diameter actuator 50mm


Weight: 0.61 Kg
Short Itemnumber: SE0732GE53
https://www.stasto.rs/web/image/product.template/104856/image_1920?unique=bcfc56d

pneumatically operated seat valve series SE07-GE; NC; body cast iron EN-GJL-250; seal EPDM; flange PN16; for liquids; closing against flow; medium temperature -10...+140°C; DN 32mm; operating pressure 0-5,5bar; control pressure 5,7-10bar; diameter actuator 50mm

This product is no longer available.

Contact Us

Technical specifications

DN 32 mm
Operating pressure 0...5,5 bar
Control pressure 5,7...10 bar
Diameter Actuator 50 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
DN 32 mm
Operating pressure 0...5,5 bar
Control pressure 5,7...10 bar
Diameter Actuator 50 mm
Medium temperature -10...+140 °C

SE07-32-GE53

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
