SE09-100-DN1251

SE09-100-DN1251

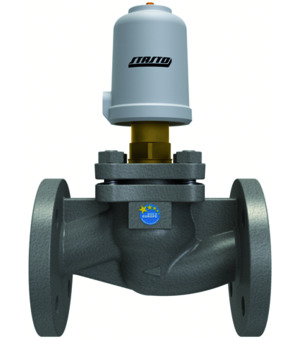

Pneumatically operated seat valve; NC; Body EN-GJS-400-18-LT; Seal NBR; Flange PN16; Pressure compensated cone for high pressure; Medium temperature -30...+80°C; DN 100mm; Operating pressure 0-16bar; Control pressure 2,2-10bar; Diameter Actuator 125mm; Electrical position indicator with 2 microswitches; Electrical position indicator with cable bushing

Intrastat No.: 84818079
Country of origin: Germany
Weight: 14.22 Kg
Short Itemnumber: SE09100DN1251
https://www.stasto.rs/web/image/product.template/140037/image_1920?unique=b5fa7f5

pneumatically operated seat valve; NC; body EN-GJS-400-18-LT; seal NBR; flange PN16; pressure compensated cone for high pressure; medium temperature -30...+80°C; DN 100mm; operating pressure 0-16bar; control pressure 2,2-10bar; diameter actuator 125mm; electrical position indicator with 2 microswitches; electrical position indicator with cable bushing

653.147,00 din. 653147.0 RSD 653.147,00 din.

cena na zahtev

excl. tax

    This combination does not exist.

    Availability:
    See availability
    Contact Us
    Documents
    Data sheets, drawings and CAD files
    No Specifications

    SE09-100-DN1251

    Documents

    1 Documents

    Language-independent
    ZIP

    CAD / 3D

    1
    No spare parts are available for this product.
