SE25-80-ST1251-ABS31-BDA08024CS-C003-32-6
SE25-80-ST1251

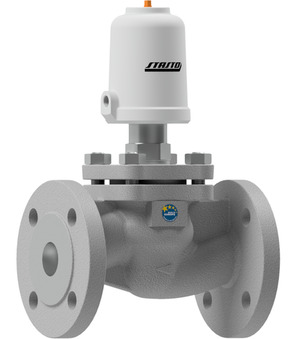

Pneumatically operated seat valve Series SE25-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; Medium temperature -30...+170°C; DN 80mm; Operating pressure 0...12bar; Control pressure 5…10bar; Diameter Actuator 125mm
ABS31
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-way solenoid valve (31A3AV20); Standard coil BDA; Connector size 32mm; Actuator 80 mm/125 mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
Country of origin: Germany
Weight: 5.88 Kg
Short Itemnumber: SE2580ST1251ABS31BDA08024CSC003326
SE25-80-ST1251
pneumatically operated seat valve series SE25-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media; closing with flow; medium temperature -30...+170°C; DN 80mm; operating pressure 0...12bar; control pressure 5…10bar; diameter actuator 125mm
ABS31
mounted pilot valve series ABS; silencer; suitable for pneumatically operated seat valves series SE, pinch valves series PI03, series PI04; 3/2-way solenoid valve (31A3AV20); standard coil BDA; connector size 32mm; actuator 80 mm/125 mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC
