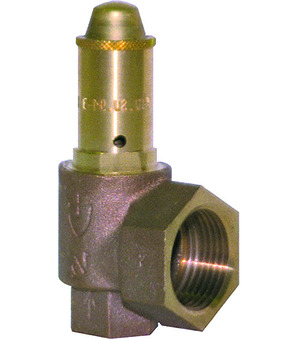

Safety valve, full stroke 3/4"-11/4"-18-4,4

Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -60…+225°C; Inlet G 3/4"; Outlet G 11/4"; DN 18mm; Set pressure 4,4bar

Intrastat No.: 84814090
Country of origin:
Germany
Weight:
1.0 Kg
Short Itemnumber:
SF0134W184.4T
https://www.stasto.rs/web/image/product.template/96712/image_1920?unique=29efce2

safety valve, full stroke series SF01; with twist lifting; body bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…+225°C; inlet G 3/4"; outlet G 11/4"; DN 18mm; set pressure 4,4bar

51.994,00 din. 51994.0 RSD 51.994,00 din.

cena na zahtev

  • DN
  • Inlet G
  • Outlet
  • Set pressure

This combination does not exist.

Availability:
dimension
DN 18 mm
Inlet G 3/4"
Outlet G 1 1/4"
characteristics
Set pressure 4,4 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_SF0134W184.4T.stp
Download
No spare parts are available for this product.
