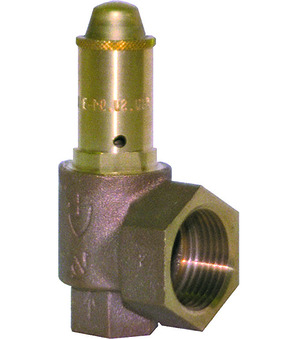

Safety valve, full stroke 11/4"-2"-30-50,9

Price:

89.043,00 din.
Safety valve, full stroke Series SF05 Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Safety and relief valves
  5. Safety valve, full stroke Series SF05
  6. SF05-114W-30-X
Safety valve, full stroke 11/4"-2"-30-50,9
Safety valve, full stroke 1"-11/2"-23-29,3
Safety valve, full stroke 1"-11/2"-23-29,3
66.767,00 din.
66.767,00 din.
Safety valve, full stroke 1/2"-1"-15,8-6,2
Safety valve, full stroke 1/2"-1"-15,8-6,2
31.697,00 din.
31.697,00 din.

Safety valve, full stroke 11/4"-2"-30-50,9

Safety valve, full stroke Series SF05; With twist lifting; Body Bronze; Seal NBR; Application: Neutral liquids; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 11/4"; Outlet G 2"; DN 30mm; Discharge capacity at 6bar(g) water 50,9m3/h

Intrastat No.: 84814090
Country of origin: Germany
Weight: 2.42 Kg
Short Itemnumber:SF05114W30X
https://www.stasto.rs/web/image/product.template/96822/image_1920?unique=4462383

safety valve, full stroke series SF05; with twist lifting; body bronze; seal NBR; application: neutral liquids; medium temperature -30…+130°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 11/4"; outlet G 2"; DN 30mm; discharge capacity at 6bar(g) water 50,9m3/h

89.043,00 din. 89043.0 RSD 89.043,00 din.

cena na zahtev

  • Female thread
  • DN
  • Female thread 2
  • Discharge capacity at 6bar(g) water

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/4"
DN 30 mm
Female thread 2 G 2"
characteristics
Discharge capacity at 6bar(g) water 50,9 m3/h

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Safety valve, full stroke Series SF05_EN.pdf
Download
CAD / 3D
1
CADSTEP_SF05114W30X.stp
Download

ZIP
Datové listy
1
Datový list_Pojistný ventil s plným zdvihem série SF05_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Sikkerhedsventil med fuldt løft Serie SF05_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Vollhubsicherheitsventil Serie SF05_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Βαλβίδα ασφαλείας πλήρους διαδρομής (πλήρους ανύψωσης) Σειρά SF05_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de seguridad de elevación total Serie SF05_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Täysnoston varoventtiili Sarja SF05_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Soupape de sécurité à levée totale Série SF05_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Sigurnosni ventil s punim hodom Serija SF05_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_biztonsági szelep, teljes áteresztésű sorozat SF05_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola di sicurezza a corsa completa Serie SF05_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Sikkerhetsventil med full løfting Serie SF05_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Volledighefveiligheidsventiel Serie SF05_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór bezpieczeństwa wysokoprzepływowy Seria SF05_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă de siguranță cu ridicare completă serie SF05_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Varnostni ventil s polnim hodom serija SF05_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_sigurnosni ventil, pun korak serije SF05_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Fullslags säkerhetsventil Serie SF05_SV.pdf
Download
No spare parts are available for this product.
​
