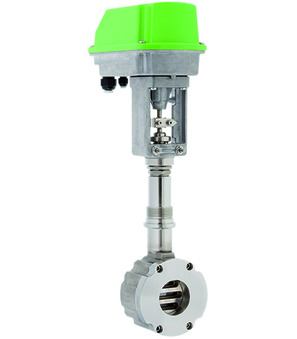

Control valve Type SG08 15-0,35
Control valve with electrical actuator; Type SG08; DN15; PN10/40; Body: Stainless steel AISI 316, Fixed disc 1.4571 Coated; Sliding disc Carbon material; Medium temperature -20...+60°C; Operating pressure Max. 25bar; Kvs-value 0,35 (20%); Characteristic equal percentage; Voltage 24V AC/DC; Control actuator CA24C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 12,5s; Free of oil and grease for oxygen
Country of origin: Germany
Weight: 3.0 Kg
Short Itemnumber: SG0815WWCECA01
control valve with electrical actuator; type SG08; DN15; PN10/40; body: stainless steel AISI 316Ti, fixed disc AISI 316Ti coated; sliding disc carbon material; medium temperature -20...+60°C; operating pressure max. 25bar; kvs-value 0,35 (20%); characteristic equal percentage; voltage 24V AC/DC; control actuator CA24C; setpoint value input 4-20mA; position feedback 4-20 mA; 2 limit switch; operating time 12,5s; free of oil and grease for oxygen
