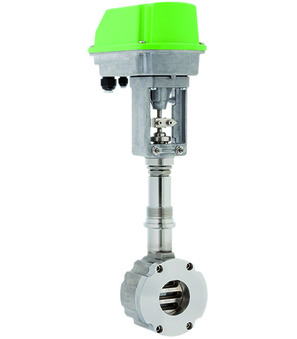

Control valve with electrical actuator Type SG08; DN15; PN10/40; Body: Stainless steel AISI 316, Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 1,7 (100%); Characteristic equal percentage; Voltage 24VAC/DC; Control actuator CA24C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 12s
Country of origin: Germany
Weight: 2.9 Kg
Short Itemnumber: SG0815WWFECA01
control valve with electrical actuator type SG08; DN15; PN10/40; body: stainless steel AISI 316Ti, fixed disc AISI 316Ti coated; sliding disc SFC; kvs-value 1,7 (100%); characteristic equal percentage; voltage 24VAC/DC; control actuator CA24C; setpoint value input 4-20mA; position feedback 4-20 mA; 2 limit switch; operating time 12s
| Brand | STASTO |
SG08-15-WWFECA-01
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SG0815WWFECA01
CAD-STEP 8,7 MB Updated 04/10/2026
