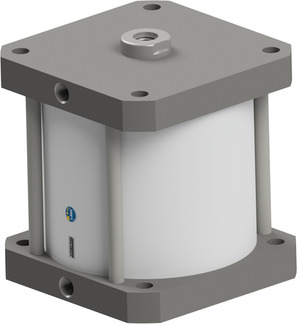

Compact cylinders Series SHD; Double acting; Pressure range 1...10bar; Diameter 125mm; Stroke 60mm; Piston rod thread M14; Connection 1/4"; Push force at 6 bar 7359N
Country of origin: Italy
Weight: 0.0 Kg
Short Itemnumber: SHD12560
compact cylinder series SHD; double acting; pressure range 1...10bar; diameter 125mm; stroke 60mm; piston rod thread M14; connection 1/4"; push force at 6 bar 7359N
Technical specifications
| Connection | 1/4" |
|---|---|
| Pressure range | 1...10bar |
| Diameter | 125 mm |
| Stroke | 75 mm |
| Connection | 1/4" |
| Pressure range | 1...10bar |
| Diameter | 125 mm |
| Stroke | 75 mm |
| Piston rod thread | M14 |
| Push force at 6 bar | 7359 N |
| Function | Double acting |
SHD125-60
