Compact cylinder SHD200-75
Compact cylinder SHD200-50
Compact cylinder SHD200-50
156.146,00 din.
156.146,00 din.
Compact cylinders SHD200-100
Compact cylinders SHD200-100
169.306,00 din.
169.306,00 din.

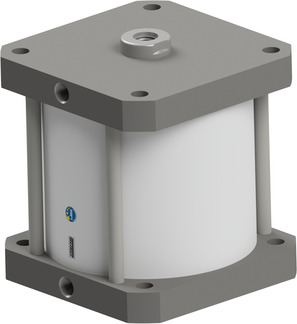

Compact cylinder SHD200-75

Compact cylinders Series SHD; Double acting; Pressure range 1...10bar; Diameter 200mm; Stroke 75mm; Piston rod thread M20; Connection 3/8"; Push force at 6 bar 18840N

Intrastat No.: 84123100
Country of origin: Italy
Weight: 2.19 Kg
Short Itemnumber:SHD20075
https://www.stasto.rs/web/image/product.template/62772/image_1920?unique=4a53954

Compact cylinders Series SHD; Double acting; Pressure range 1...10bar; Diameter 200mm; Stroke 75mm; Piston rod thread M20; Connection 3/8"; Push force at 6 bar 18840N

162.702,00 din. 162702.0 RSD 162.702,00 din.

cena na zahtev

  • Diameter
  • Connection
  • Stroke
  • Piston rod thread
  • Function
  • Push force at 6 bar

This combination does not exist.

Availability:
Contact Us
dimension
Diameter 200 mm
Connection 3/8"
Stroke 75 mm
Piston rod thread M20
function
Function Double acting
pressure
Push force at 6 bar 18840 N
