SL200-12-E-BDA08024DS-C003-32-LV-2

Price:

11.444,00 din.
List prices STASTO RS
2/2-way solenoid valve Series SL200, 21H Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. Other materiales - A01
  5. 2/2-way solenoid valve Series SL200, 21H
  6. SL200-12-E-BDA08024DS-C003-32-LV-2

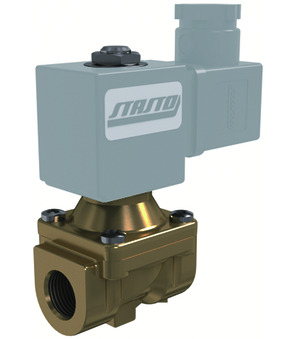

SL200-12-E-BDA08024DS-C003-32-LV-2

SL200-12-E-BDA08024DS-C003-32-LV-2

SL200-12-E
2/2-way solenoid valve Series SL200-E, 21H-E; Pilot-operated; NC; Body Brass; Seal EPDM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 12mm; Pressure AC 0,1…20bar; Pressure DC 0,1…10bar; Length 50mm
BDA08024DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24V/50-60Hz
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.45 Kg
Short Itemnumber:SL20012EBDA08024DSC00332LV2
https://www.stasto.rs/web/image/product.template/243851/image_1920?unique=d5ecd09

NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N

11.444,00 din. 11444.0 RSD 11.444,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Connector size
  • Connector
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 12 mm
Length 50 mm
Designs
Connector size 32 mm
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 24V/50-60Hz
Voltage type AC
pressure
Pressure AC 0,1...20 bar
Pressure DC 0,1...10 bar
materials
Seal EPDM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval CE
