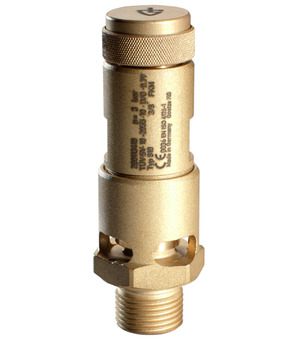

Safety valve PTFE-2"-40-2,2

Name: Safety valve PTFE-2"-40-2,2
Brand: STASTO
SKU: SV01-20-40-2,2-T-3C

Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Seal PTFE; Connection G 2"; DN 40mm; Set pressure 2,2bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 2.16 Kg
Short Itemnumber:SV0120402.2T3C

safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; seal PTFE; connection G 2"; DN 40mm; set pressure 2,2bar

On request

Connection
- G 2"
DN
- 40 mm
Seal
- PTFE
Set pressure
- 2,2 bar

This combination does not exist.

Availability:

dimension
Connection	G 2"
DN	40 mm
materials
Seal	PTFE
characteristics
Set pressure	2,2 bar
