Safety valve SV02-112-32-22-3G
Safety valve SV02-112-32-21-3G
Safety valve SV02-112-32-21-3G
47.376,00 din.
47.376,00 din.
Safety valve SV02-20-48-0,4-3G
Safety valve SV02-20-48-0,4-3G
67.997,00 din.
67.997,00 din.

Safety valve SV02-112-32-22-3G

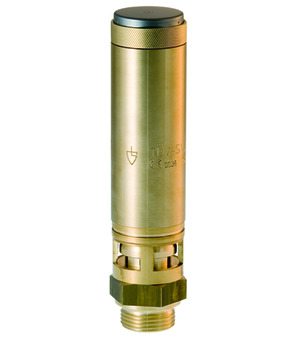

safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; incl. TÜV-inspection certificate EN-10204-3.2; G 11/2"; DN 32mm; set pressure 22bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 2.6 Kg
Short Itemnumber:SV0211232223G
https://www.stasto.rs/web/image/product.template/237542/image_1920?unique=c5de58b

safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; incl. TÜV-inspection certificate EN-10204-3.2; G 11/2"; DN 32mm; set pressure 22bar

47.376,00 din. 47376.0 RSD 47.376,00 din.

cena na zahtev

  • Female thread
  • DN
  • Seal
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/2"
DN 32 mm
materials
Seal FKM
characteristics
Set pressure 22 bar
No spare parts are available for this product.
