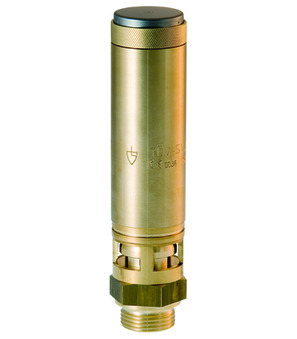

Safety valve SV02-12-14-6,2
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 1/2"; DN 14mm; Set pressure 6,2bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.512 Kg
Short Itemnumber:SV0212146.2
Country of origin: Germany
Weight: 0.512 Kg
Short Itemnumber:SV0212146.2
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 1/2"; DN 14mm; set pressure 6,2bar
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 14 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 6,2 bar |
No spare parts are available for this product.
