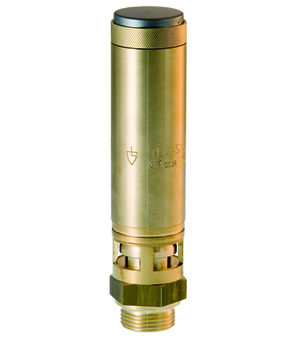

Safety valve SV02-20-48-4,5
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 2"; DN 48mm; Set pressure 4,5bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 5.25 Kg
Short Itemnumber: SV0220484.5
Country of origin: Germany
Weight: 5.25 Kg
Short Itemnumber: SV0220484.5
Sicherheitsventil Serie SV02; mit Drehanlüftung; Körper Messing; Druckfeder Edelstahl; Dichtung FKM; Anwendung: Druckluft, ungiftige, nicht brennbare Gase, die frei austreten dürfen; Mediumstemperatur -20...200°C; G 2"; DN 48mm; Einstelldruck 4,5bar
| dimension | |
|---|---|
| Female thread | G 2" |
| DN | 48 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 4,5 bar |
No spare parts are available for this product.
