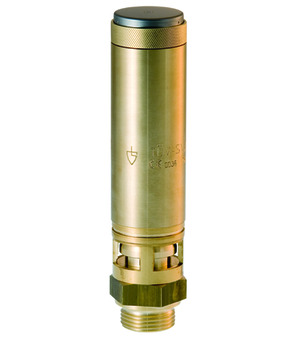

Safety valve 3/4"-20-0,2...35-1300
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…+200°C; Possible set pressures In steps of 0,1 bar; G 3/4"; DN 20mm; Set pressure 0,2...35bar; Discharge capacity at 6bar(g) air 1300Nm3/h
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.3 Kg
Short Itemnumber:SV023420X
Country of origin: Germany
Weight: 1.3 Kg
Short Itemnumber:SV023420X
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…+200°C; possible set pressures in steps of 0,1 bar; G 3/4"; DN 20mm; set pressure 0,2...35bar; discharge capacity at 6bar(g) air 1300Nm3/h
| dimension | |
|---|---|
| Male thread | G 3/4" |
| DN | 20 mm |
| characteristics | |
| Set pressure | 0,2...35 bar |
| Blow-off capacity at 6 bar air | 1300 Nm3/h |
No spare parts are available for this product.
