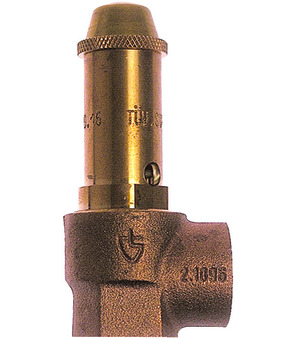

Safety valve Series SV04; With twist lifting; Body Bronze; Seal NBR; Application: Water, Neutral liquids; Medium temperature -30...130°C; G 1"; DN 16mm; Set pressure 3Bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.47 Kg
Short Itemnumber: SV0410163
Country of origin: Germany
Weight: 0.47 Kg
Short Itemnumber: SV0410163
safety valve series SV04; with twist lifting; body bronze; seal NBR; application: water, neutral liquids; medium temperature -30...130°C; G 1"; DN 16mm; set pressure 3bar
Technical specifications
| Female thread | G 1" |
|---|---|
| DN | 16 mm |
| Set pressure | 3 bar |
| Female thread | G 1" |
| DN | 16 mm |
| Set pressure | 3 bar |
SV04-10-16-3
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SV0410163
CAD-STEP 2,3 MB Updated 04/10/2026
No spare parts are available for this product.
