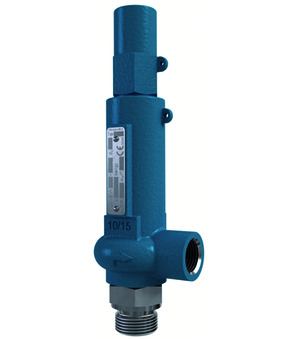

Safety valve 11/4"-16-1"-232,4-0,1…32
Safety valve Series SV05; Body 1.4571; Cap Ductile iron EN-GJS-400-15; Metal sealing; Gas-proof cover; Medium temperature -10…+280°C; Possible set pressures In steps of 0,1 bar; Inlet male G 11/4"; DN 16mm; Outlet female G 1"; Discharge capacity at 6bar(g) steam 232,4kg/h; Possible set pressures 0,1…32
Intrastat No.: 84814010
Country of origin: Austria
Weight: 2.57 Kg
Short Itemnumber:SV05114R16X
Country of origin: Austria
Weight: 2.57 Kg
Short Itemnumber:SV05114R16X
safety valve series SV05; body AISI 316Ti; cap ductile iron EN-GJS-400-15; metal sealing; gas-proof cover; medium temperature -10…+280°C; possible set pressures in steps of 0,1 bar; inlet male G 11/4"; DN 16mm; outlet female G 1"; discharge capacity at 6bar(g) steam 232,4kg/h; possible set pressures 0,1…32
| dimension | |
|---|---|
| Male thread | G 1 1/4" |
| Female thread | G 1" |
| DN | 16 mm |
| pressure | |
| Possible set pressures | 0,1...32 bar |
| characteristics | |
| Blow-off capacity at 6 bar steam | 232,4 kg/h |
No spare parts are available for this product.
