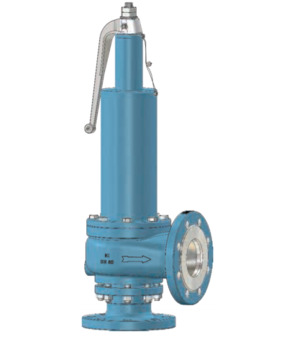

Safety valve Stahl 1.0619-Stahl 1.0619-DN50/PN16-DN50/PN16-32-C-EPDM-EPDM-10

Name: Safety valve Stahl 1.0619-Stahl 1.0619-DN50/PN16-DN50/PN16-32-C-EPDM-EPDM-10
Brand: STASTO
SKU: SV09-50-32-10-E
Price: 212487.0 RSD
Availability: InStock

Safety valve Series SV09; For vapors, gases and liquids; Body Stahl 1.0619; Cap Stahl 1.0619; Inlet DN50/PN16; Outlet DN50/PN16; DN 32mm; Valve head C; Seat seal EPDM; Other seals EPDM; Set pressure 10bar

Intrastat No.: 84814010
Country of origin: Germany
Weight: 17.4 Kg
Short Itemnumber: SV09503210E

safety valve series SV09; for vapors, gases and liquids; body Stahl 1.0619; cap Stahl 1.0619; inlet DN50/PN16; outlet DN50/PN16; DN 32mm; valve head C; seat seal EPDM; other seals EPDM; set pressure 10bar

212.487,00 din. 212487.0 RSD 212.487,00 din.

DN
- 32 mm
Inlet
- DN50/PN16
Outlet
- DN50/PN16
Valve head
- C
Body
- Carbon steel A216-WCB
Seat seal
- EPDM
Other seals
- EPDM
Cap
- Carbon steel A216-WCB
Set pressure
- 10 bar

This combination does not exist.

Availability:

Add to cart

dimension
DN	32 mm
Inlet	DN50/PN16
Outlet	DN50/PN16
function
Valve head	C
materials
Body	Carbon steel A216-WCB
Seat seal	EPDM
Other seals	EPDM
Cap	Carbon steel A216-WCB
characteristics
Set pressure	10 bar
