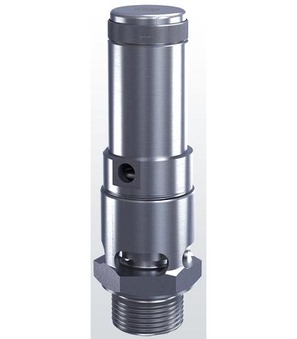

Safety valve SV25-12-11-11-2A
Safety valve 1/2"-11-FKM--20...200-11
Safety valve 1/2"-11-FKM--20...200-11
32.312,00 din.
32.312,00 din.
Safety valve 1/2"-11-FKM--20...200-12
Safety valve 1/2"-11-FKM--20...200-12
32.312,00 din.
32.312,00 din.

Safety valve SV25-12-11-11-2A

safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/2"; DN 11mm; seal FKM; medium temperature -20...200°C; set pressure 11bar; incl. test report EN10204-2.2

Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.185 Kg
Short Itemnumber:SV251211112A
https://www.stasto.rs/web/image/product.template/229182/image_1920?unique=1a28827

safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 1/2"; DN 11mm; seal FKM; medium temperature -20...200°C; set pressure 11bar; incl. test report EN10204-2.2

32.312,00 din. 32312.0 RSD 32.312,00 din.

cena na zahtev

  • Male thread
  • DN
  • Seal
  • Set pressure
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
Male thread G 1/2"
DN 11 mm
materials
Seal FKM
characteristics
Set pressure 11 bar
Medium temperature -20...+200 °C
No spare parts are available for this product.
