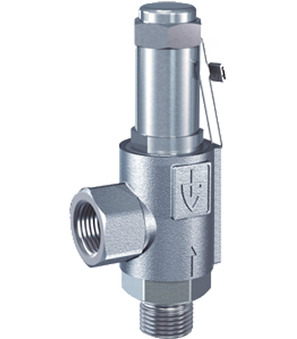

Safety valve SV34-14W1-6-2,5
safety valve series SV34; body stainless steel AISI 316Ti/AISI 316; application: compressed air, non-toxic gases, vapors; medium temperature -60...225°C; gas-proof cover; inlet male G 1/4"; outlet female G 1/2"; DN 6mm; seal PTFE; set pressure 2,5bar
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SV3414W162.5
Country of origin: Germany
Short Itemnumber: SV3414W162.5
safety valve series SV34; body stainless steel AISI 316Ti/AISI 316; application: compressed air, non-toxic gases, vapors; medium temperature -60...225°C; gas-proof cover; inlet male G 1/4"; outlet female G 1/2"; DN 6mm; seal PTFE; set pressure 2,5bar
| dimension | |
|---|---|
| DN | 6 mm |
| Inlet male | G 1/4" |
| Outlet female | G 1/2" |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 4,9 bar |
No spare parts are available for this product.
