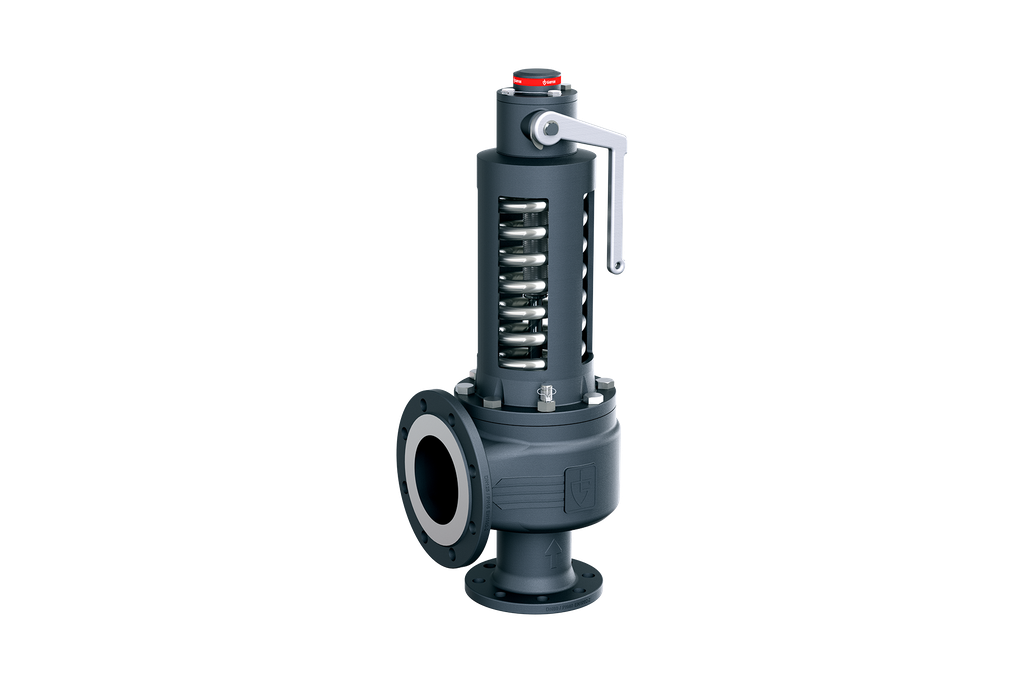

Safety valve; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN32/PN40; Outlet DN50/PN16; Seal FKM; Medium temperature -20...+200°C; Set pressure 7,5bar
Country of origin: Germany
Weight: 19.0 Kg
Short Itemnumber: SV52324W29.37.5V
safety valve; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN32/PN40; outlet DN50/PN16; seal FKM; medium temperature -20...+200°C; set pressure 7,5bar
Technical specifications
| Inlet | DN32/PN40 |
|---|---|
| Outlet | DN50/PN16 |
| Seal | FKM |
| Set pressure | 7,5 bar |
| Inlet | DN32/PN40 |
| Outlet | DN50/PN16 |
| Seal | FKM |
| Set pressure | 7,5 bar |
| Medium temperature | -20...+200 °C |
SV52-324W-29,3-7,5-V
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
