STASTO Combination

STASTO Combination

STASTO Combination

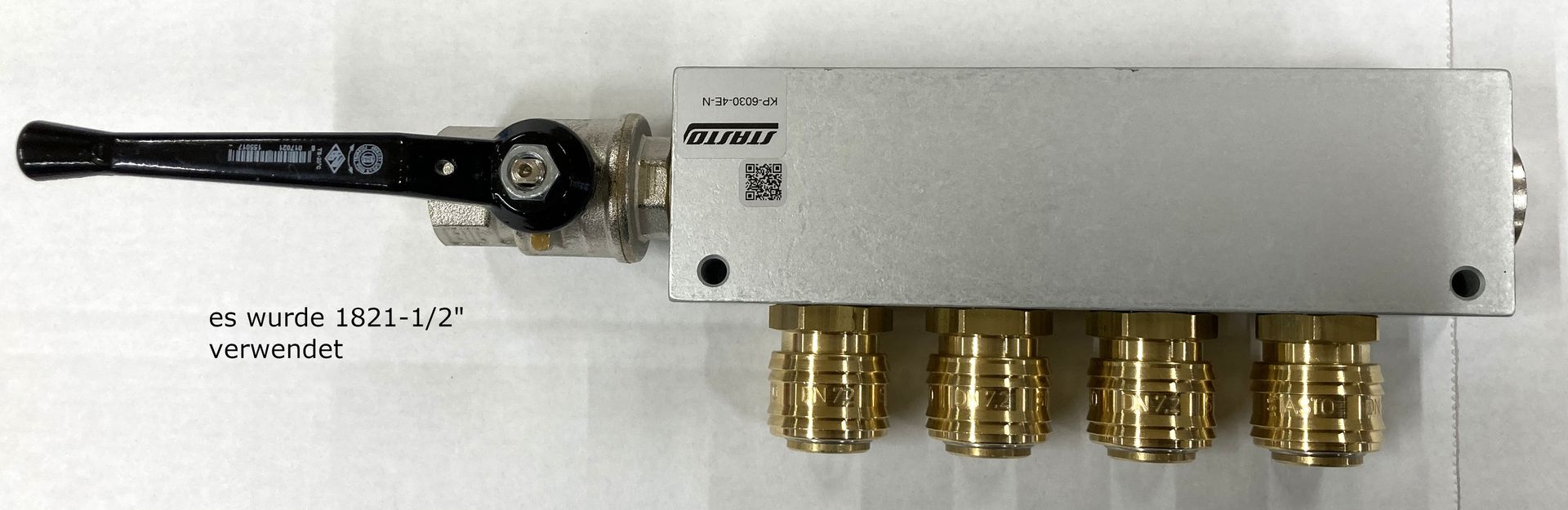

Fully assembled and tested:
Distributor; Material Anodized aluminum; Connecting thread 1/2"
Outlets Open 4 Pcs Coupling C0C72-M12-B; DN 7,2; Brass; Seal NBR; Pressure -0,87...35bar
Inlet: Ball valve 1821-1/2"
Incl. Plug screw

Intrastat No.: 84123100
Country of origin: Germany
Weight: 1.094 Kg
Short Itemnumber: TH0001
https://www.stasto.rs/web/image/product.template/174214/image_1920?unique=351c77c

STASTO combination
fully assembled and tested:
distributor; material anodized aluminum; connecting thread 1/2"
outlets open 4 pcs coupling C0C72-M12-B; DN 7,2; brass; seal NBR; pressure -0,87...35bar
inlet: ball valve 1821-1/2"
incl. plug screw

12.702,00 din. 12702.0 RSD 12.702,00 din.

cena na zahtev

  • Connection
  • Dimension
  • Function
  • Max. inlet pressure
  • Flow at 6bar/Δp=1bar
  • Filter element

This combination does not exist.

Availability:
Contact Us

Share

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

ZIP
Montage- und Betriebsanleitungen
1
Montageanleitung_STASTO Kombination_DE.jpg
Download
No documents are available for this language. Please open "Other languages."
Ball valve made of brass 1821-1/2"
1821-1/2" x 1.0
Ball valve made of brass 1821-1/2"
Ball valve made of brass Series 1821; Full bore; Female/male thread; Seal PTFE; Medium temperature -20...+160°C; Turning handle Aluminum; Connection G 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 64,5mm
Add to Cart
Distributor DI02-4-12
DI02-4-12 x 1.0
Distributor DI02-4-12
distributor series DI02; material anodized aluminum; outlet thread 1/2"; connecting thread 1/2"; outlets einseitig; distance of outlets 34mm; number of outlets 4
Add to Cart
C0C72-M12-B
C0C72-M12-B x 4.0
C0C72-M12-B
Coupling DN 7,2; Male thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C; Thread 1/2"
