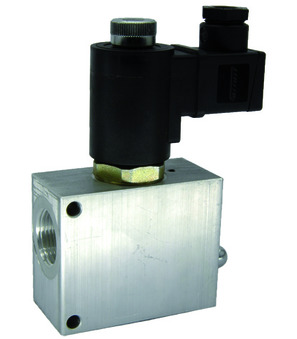

2/2-way seat valve VE40-NC-38-E-12DC

2/2-way seat valve VE40-NC-38-E-12DC

2/2-way seat valve Series VE; Electrically operated; Pilot-operated; Temperature range -30...+80°C; Max. Flow rate 40 l/min; Max. Operating pressure 300bar; Emergency drain screw; Connection 3/8"; Connector size 32mm; Function NC; Voltage 12VDC

H_EV2538BVENC
Intrastat No.: 84812010
Country of origin: Italy
Weight: 0.56 Kg
Short Itemnumber: VE40NC38E12DC

Scope of delivery

body, valve, coil, connector
https://www.stasto.rs/web/image/product.template/78209/image_1920?unique=e14cab5

2/2-way seat valve Series VE; Electrically operated; Pilot-operated; Temperature range -30...+80°C; Max. Flow rate 40 l/min; Max. Operating pressure 300bar; Emergency drain screw; Connection 3/8"; Connector size 32mm; Function NC; Voltage 12VDC

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • Function
  • Brand
  • Voltage

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/8"
Function NC
Voltage 12VDC
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 3/8"
Function NC
Voltage 12VDC
Brand STASTO

VE40-NC-38-E-12DC

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
VE-NC-40-011N-34UNF x 1.0 Pcs
VE-NC-40-011N-34UNF
2/2-way valve cartridge NC 40 l/min, 300 bar, 3/4"UNF
C-38GAS-011N-T-E x 1.0 Pcs
C-38GAS-011N-T-E
Block for cartridge 3/4"UNF connection thread 3/8"BSP
C36-D-012DC
C36-D-012DC x 1.0 Pcs
C36-D-012DC
Coil Type C; Suitable for Solenoid valves Series VE; Connector size 32mm; Valve series VE20/40 NC/NO; Voltage 12VDC
C003-32-6
C003-32-6 x 1.0 Pcs
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
