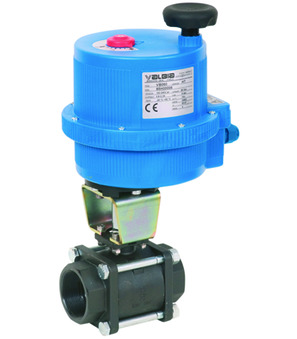

Ball valve with electrical actuator BA028-34-CH

Ball valve with electrical actuator BA028-34-CH

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; Incl. Positioner 4-20mA/0-10V; RP 3/4"; DN 20mm; Pressure range 0...40bar; Length 76mm; Operating time 8s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.26 Kg
Short Itemnumber: BA02834CH
https://www.stasto.rs/web/image/product.template/136211/image_1920?unique=c096d6d

ball valve with electrical actuator series 8E004; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; incl. positioner 4-20mA/0-10V; RP 3/4"; DN 20mm; pressure range 0...40bar; length 76mm; operating time 8s; voltage 100-240VAC

118.863,00 din. 118863.0 RSD 118.863,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 3/4"
DN 20 mm
Length 76 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Operating time 8 s
Ball valve made of steel 713000-3/4"
713000-3/4" x 1.0
Ball valve made of steel 713000-3/4"
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm
Add to Cart
Electrical actuator VB030-H-P0S
VB030-H-P0S x 1.0
Electrical actuator VB030-H-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
