Ball valve with pneumatic actuator BA029-40-S0-3C

Price:

78.477,00 din.
Ball valve with pneumatic actuator Series BA029 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA029
  6. BA029-40-S0-3C
Ball valve with pneumatic actuator BA029-40-S0-3C
Ball valve with pneumatic actuator BA029-25-S0-3C
Ball valve with pneumatic actuator BA029-25-S0-3C
53.714,00 din.
53.714,00 din.
Electrical actuator VB190M-L-AKKU-P0S
Electrical actuator VB190M-L-AKKU-P0S
999.999,00 din.
999.999,00 din.

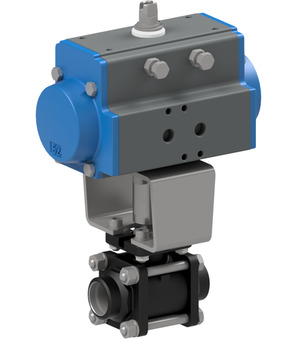

Ball valve with pneumatic actuator BA029-40-S0-3C

Ball valve with pneumatic actuator Series BA029; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.87 Kg
Short Itemnumber:BA02940S03C
https://www.stasto.rs/web/image/product.template/140866/image_1920?unique=07bf1b6

ball valve with pneumatic actuator series BA029; butt weld ends; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

78.477,00 din. 78477.0 RSD 78.477,00 din.

cena na zahtev

  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 40 mm
Length 116 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAS0855

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Ball valve with pneumatic actuator Series BA029_EN.pdf
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s otočným pneumatickým pohonem série BA029_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Druckluftdrehantrieb Serie BA029_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA029_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem pneumatycznym Seria BA029_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA029_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa pneumatskim aktuatorom serije BA029_SRLATIN.pdf
Download
Ball valve made of steel BA029-40-L-3C
BA029-40-L-3C x 1.0
Ball valve made of steel BA029-40-L-3C
Ball valve made of steel Series BA029; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
​
