BA033-112-S2

BA033-112-S2

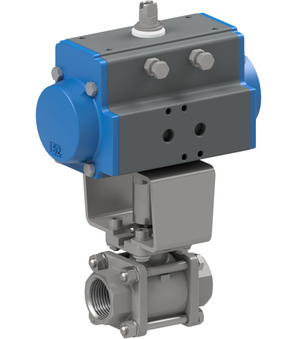

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1003

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.03 Kg
Short Itemnumber: BA033112S2
https://www.stasto.rs/web/image/product.template/160332/image_1920?unique=3970b0b

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS1003

93.448,00 din. 93448.0 RSD 93.448,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel 710000-11/2"
    710000-11/2" x 1.0
    Ball valve made of stainless steel 710000-11/2"
    Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
    Add to Cart
    Pneumatic actuator PAS1003
    PAS1003 x 1.0
    Pneumatic actuator PAS1003
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm
    Add to Cart
